Vacuum Turbo-Emulsifiers series ES by Bergami
The Highest Technology to Process Liquid and Creamy Products

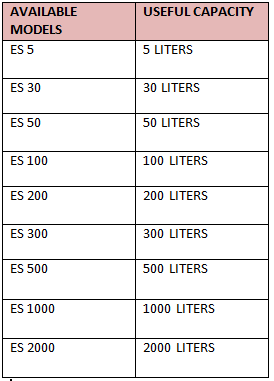

Vacuum turbo-emulsifiers series ES by Bergami Packaging Solutions are designed to process liquid and creamy products for the cosmetic and pharmaceutical industries, in particular emulsions (cream/milk products), serums, oils and balms, gels and lotions. Special versions of these machines are able to process other products such as make up, suppositories, hair dyes, toothpastes, mud products and shaving creams. The useful capacity is from 5 to 2000 litres, respectively.

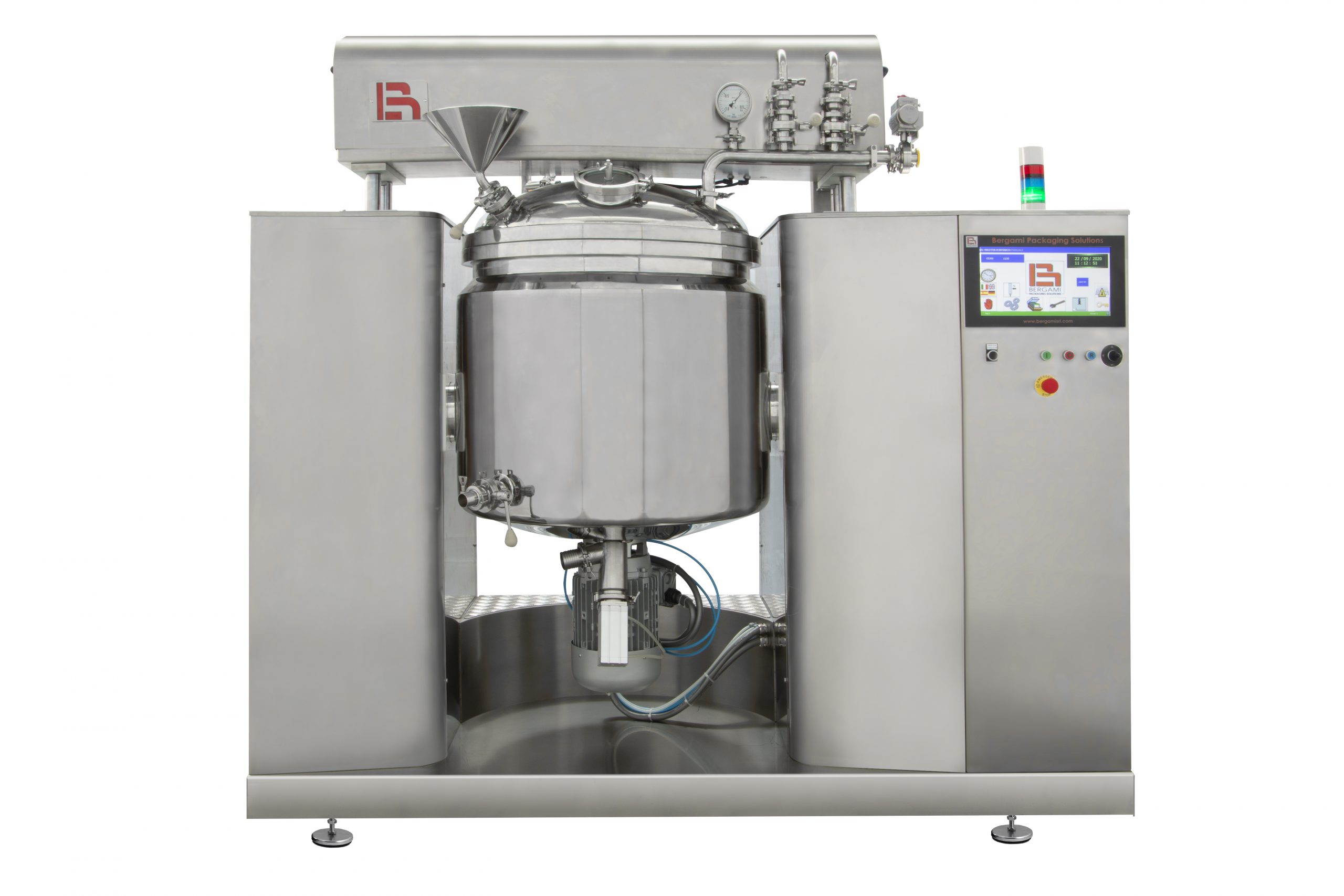

The core of the Vacuum turbo-emulsifiers from 5 to 2000 is the vessel, where the raw materials are treated until the finished product is obtained. The vessel is equipped to load the raw materials, to unload the final product and to check the process.

All the essential functions (temperature and vacuum control, vessel movements) are commanded from the control panel, developed in house with Bergami technology including the software records of the working parameters.

The bulk is processed through the combined action of two independent and complementary movements:
1) slow mixing: having a coaxial movement that continuously moves the bulk and favours heat exchange by means of the scrapers;
2) fast mixing action: consisting of the homogenizing group.

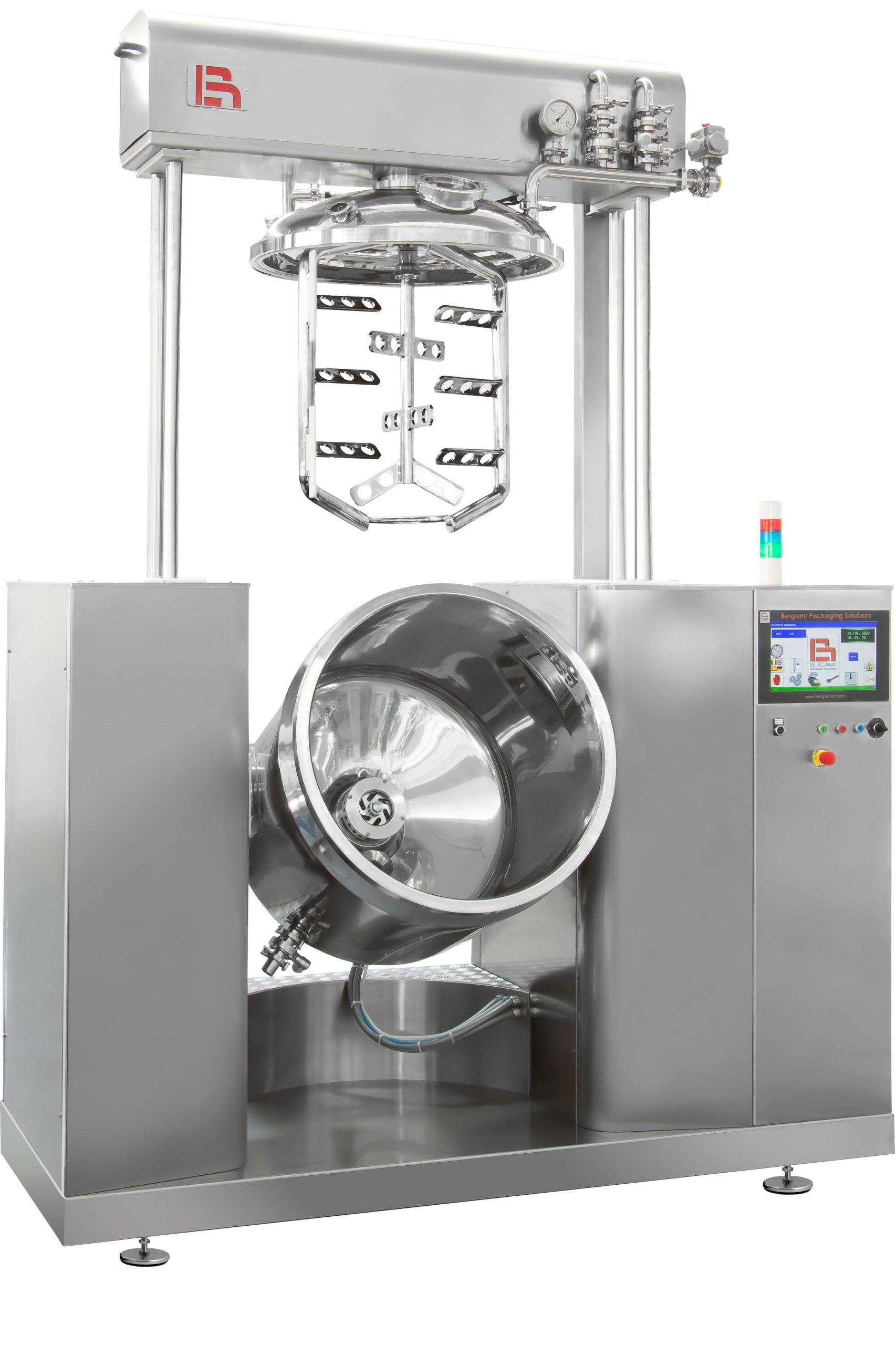

The coaxial slow mixer is recommended for processing highly viscous products. As an available option, instead of the coaxial mixer, the machine can be equipped with a double-planetary slow mixer suitable for medium-density creamy products.

The emulsifying group on the bottom of the vessel, made up of a turbine – stator and rotor – ensures the product is rapidly and thoroughly homogenized. A universal turbine – stator and helix rotor 3-blade shaped (multi-blade shaped on the ES 1000 and 2000 model) – is suitable for a wide range of products.

The coaxial slow mixer is recommended for processing highly viscous products. As an available option, instead of the coaxial mixer, the machine can be equipped with a double-planetary slow mixer suitable for medium-density creamy products.

The emulsifying group on the bottom of the vessel, made up of a turbine – stator and rotor – ensures the product is rapidly and thoroughly homogenized. A universal turbine – stator and helix rotor 3-blade shaped (multi-blade shaped on the ES 1000 and 2000 model) – is suitable for a wide range of products.
